PFP-23HPVGD-MR-CE

PRESSURE AND VOLUME PUMP

This pressure/volume pump is the most suitable for drop-in units. The engine and pump are mounted on a steel protective frame with folding handles

Also available in skid version

ENGINE SPECIFICATIONS

  • Vanguard, model 380000, air cooled engine
  • V-Twin cylinder, 4-stroke gasoline engine
  • Electric start with recoil start as backup
  • 2.25 Gallons (8.5 L) integrated fuel tank

INCLUDED ACCESSORIES

  • Full control panel with pressure gauge, vacuum gauge, throttle, choke, starter, panel light and priming valve
  • 16 Amps alternator
  • Low oil alert
  • 12-V battery

PUMP UNIT SPECIFICATIONS

  • C.E.T. single stage centrifugal pump
  • Pump body made from high resistance aluminum alloy
  • Bronze impeller
  • Mechanical shaft seal
  • Exhaust priming system, guaranteed up to 20’ (6 meter) lift
  • One 1 1/2" (38mm) delivery outlet with Fire Type swing-out valve
  • One 2 1/2" (65mm) suction inlet
  • Dimensions: Length: 24 3/4" (630 mm); Width: 26 1/4" (667 mm); Height: 25 3/4" (654 mm);
  • Wet weight: 185 lbs (84 kg)

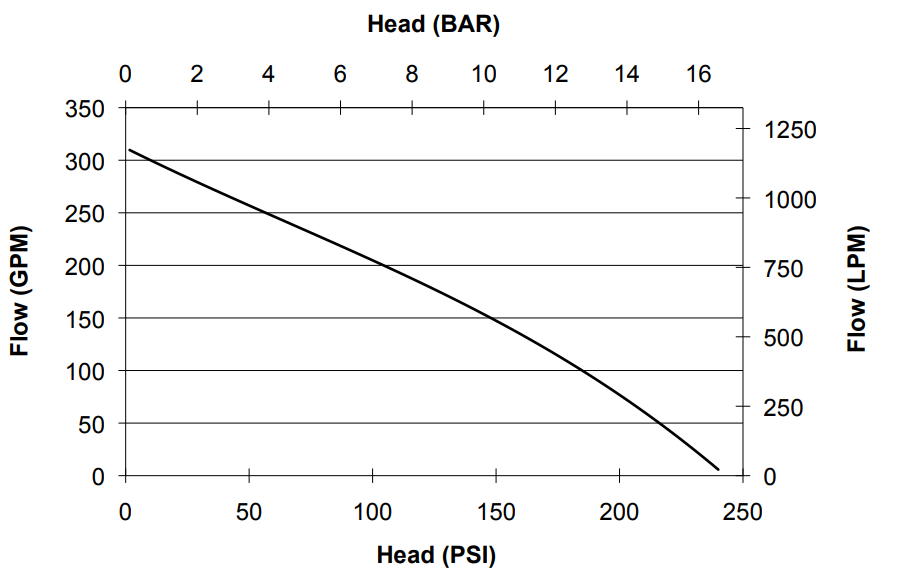

PERFORMANCE

MAX FLOW: 300 GPM

MAX PRESSURE: 225 PSI

265 GPM @ 50 PSI

195 GPM @ 100 PSI

150 GPM @ 150 PSI

80 GPM @ 200 PSI

LIMITED WARRANTY

  • 3 YEARS
