PFP-23HPVGD-1D-CE

VANGUARD POWERED HIGH VOLUME PUMP

This pump is the ideal tool to fill your fire truck, supply your pump truck or carry water over a long distance.

Also available in skid version

ENGINE SPECIFICATIONS

  • Vanguard, model 380000, air cooled engine
  • V-Twin cylinder, 4-stroke gasoline engine
  • Electric start with recoil start as backup
  • 2.25 Gallons (8.5 L) integrated fuel tank

INCLUDED ACCESSORIES

  • Full control panel with pressure gauge, vacuum gauge, throttle, choke, starter, panel light and priming valve
  • 16 Amps alternator
  • Low oil alert
  • 12-V battery

PUMP UNIT SPECIFICATIONS

  • C.E.T. single stage centrifugal pump
  • Pump body made from high resistance aluminum alloy
  • Bronze impeller
  • Mechanical shaft seal
  • Exhaust priming system, guaranteed up to 20’ (6 meter) lift
  • One 2 1/2” (65 mm) delivery outlets with Fire Type swing-out valve
  • One 4” (100 mm) suction inlet
  • Dimensions: Length: 24 3/4'' (630 mm) Width: 26 1/4'' (667 mm); Height: 25 3/4'' (654 mm)
  • Wet weight: 188 lbs (85.5 kg)

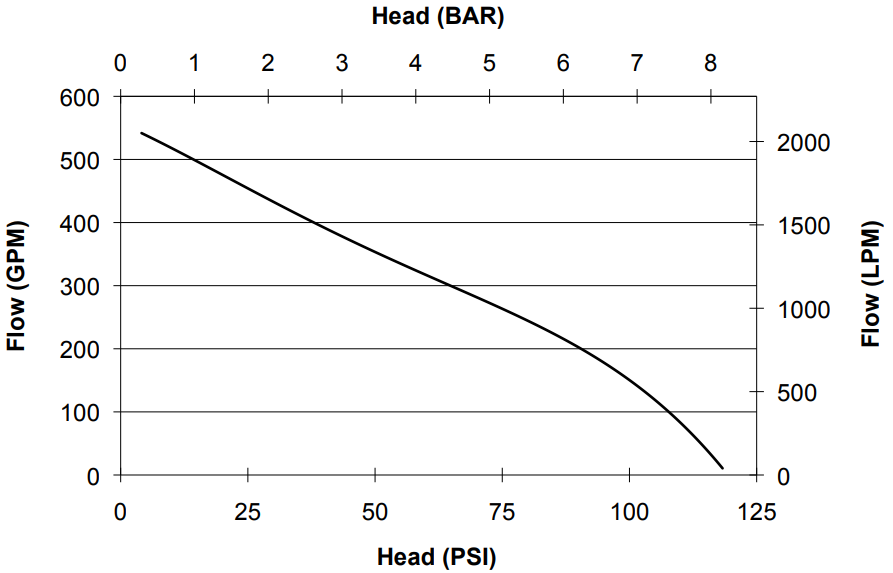

PERFORMANCE

MAX FLOW : 550 GPM

MAX PRESSURE : 115 PSI

455 GPM @ 25 PSI

350 GPM @ 50 PSI

160 GPM @ 100 PSI

LIMITED WARRANTY

  • 3 YEARS
