Portable Pumps
PFP-18HPVGD-HP
HIGH PRESSURE PUMP
This high pressure Vanguard pump goes up to 300 PSI. Engine and pump are mounted on a protective frame made of steel with shock absorbent and folding handles
ENGINE SPECIFICATIONS
- Vanguard. model 3564, air cooled engine
- 2-cylinder, 4-stroke gasoline engine
- Electric start with recoil start as backup
- 6 gallon (22 l) detachable fuel tank
INCLUDED ACCESSORIES
- 16 Amps alternator
- 12-V Battery
- Pressure gauge
PUMP UNIT SPECIFICATIONS
- Transmission drive C.E.T. single stage centrifugal pump
- Belt drive transmission
- Pump body made from high resistant aluminum alloy
- Bronze impeller
- Mechanical shaft seal
- Stainless steel pump shaft
- Exhaust priming system, guaranteed up to 20’ (6 meter lift)
- One 1-1/2’’ (38mm) delivery outlet with Fire Type swing-out valve
- One 2-1/2’’ (65 mm) suction inlet
- Dimensions: Length: 27.5’’ (700 mm); Width: 22’’ (559 mm); Height: 24’’ (610 mm)
- Weight: 162 lbs (74 kg)

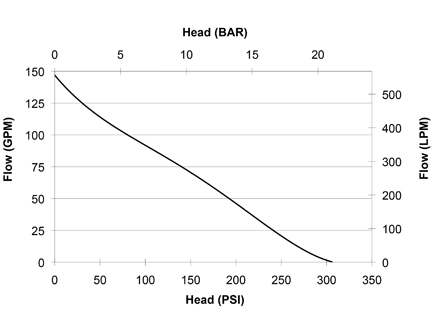

PERFORMANCE
115 GPM @ 50 PSI
100 GPM @ 100 PSI
70 GPM @ 150 PSI
45 GPM @ 200 PSI
20 GPM @ 250 PSI
LIMITED WARRANTY
- 3 YEARS
