Portable Pumps

Print Pdf Download Page

PFP-5HPHND-DW

The PFP-5hpHND-DW is a compact design pump that gives you a range of applications

ENGINE SPECIFICATIONS

  • GX200 Honda air cooled engine
  • Single cylinder, 4-stroke gasoline engine
  • Fuel tank size : 0.82Gal (3.1L)



  • spec here

PUMP UNIT SPECIFICATIONS

  • Self priming system
  • Mechanical seal
  • Single stage pump
  • Inlet connection: 3” male NPT
  • Outlet connection: 3” male NPT
  • Dimensions : Length 24 1/4’’ (616mm) X Width 16’’ (406mm) X height 17 1/2’’ (445mm)
  • Wet weight : 80 lbs (37kg)

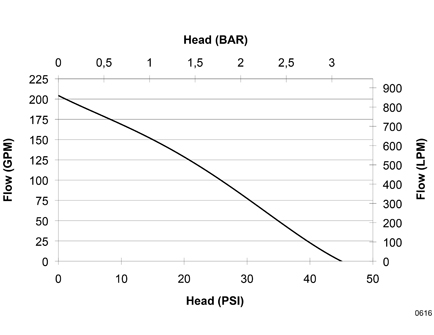

PERFORMANCE

MAX FLOW : 200 GPM

MAX PRESSURE : 40 PSI

165 GPM @ 10 PSI

130 GPM @ 20 PSI

80 GPM @ 35 PSI

LIMITED WARRANTY

  • 3 YEARS
