PFP-38HPKHL-MF

GAS POWERED PUMP

This high pressure/high volume pump is made to fight fire or supply water to the fire scene. Engine and pump are mounted on a chassis made of profile steel with shock absorbers and heavy duty carrying handles

ENGINE SPECIFICATIONS

  • CH1000 Kohler air cooled engine
  • 2-cylinder, 4-stroke gasoline engine
  • 12V electric start
  • 6 gallon (22 L) detachable fuel tank

INCLUDED ACCESSORIES

  • 25 Amps alternator
  • Vernier throttle
  • 12-V Battery
  • Choke control lever
  • Pressure gauge

PUMP UNIT SPECIFICATIONS

  • C.E.T. single stage centrifugal pump
  • Pump body made from high resistant aluminum alloy
  • Bronze impeller
  • Mechanical shaft seal
  • Stainless steel pump shaft
  • Exhaust priming system, guaranteed up to 20’(6 meter lift)
  • Two 2 1⁄2’’ (65 mm) delivery outlet with pressure valve
  • One 4’’ (100 mm) suction inlet
  • Dimensions: Length: 34’’ (865 mm); Width: 24’’ (610 mm); Height: 31’’ (788 mm)
  • Weight: 280 lbs (127 Kg)

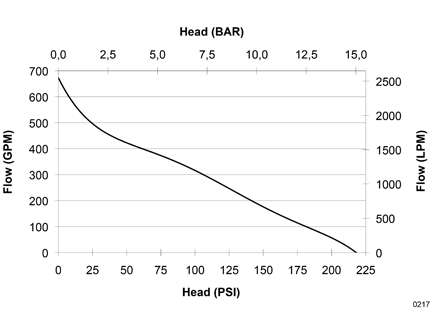

PERFORMANCE

MAX FLOW : 680 GPM

MAX PRESSURE : 205 PSI

515 GPM @ 25 PSI

180 GPM @ 150 PSI

50 GPM @ 200 PSI

LIMITED WARRANTY

  • 2 YEARS
