PFP-27HP-2D

PRESSURE AND VOLUME PUMP

This pump is the ideal tool to fill your fire truck, supply your pump truck or carry water over a long distance

Also available in skid version

ENGINE SPECIFICATIONS

  • CH740 Kohler air cooled engine
  • V-Twin cylinder, 4-stroke gasoline engine
  • Electric start
  • 6 gallon (22 l) detachable fuel tank
  • 20 amp. charging, regulated

INCLUDED ACCESSORIES

  • Swivel spotlight
  • Pressure gauge
  • 12-V battery

PUMP UNIT SPECIFICATIONS

  • C.E.T. single stage centrifugal pump
  • Pump body made from high resistance aluminum alloy
  • Bronze impeller
  • Mechanical shaft seal
  • Exhaust priming system, guaranteed up to 20’ (6 meter) lift
  • Two 2 1/2” (65 mm) delivery outlets fire type swing-out valve
  • One 4” (100 mm) suction inlet
  • Dimensions: Length: 28'' (710mm). Width: 22'' (560mm). Height: 24-1/2'' (620mm)
  • Weight: 194 lbs (88.2Kg)

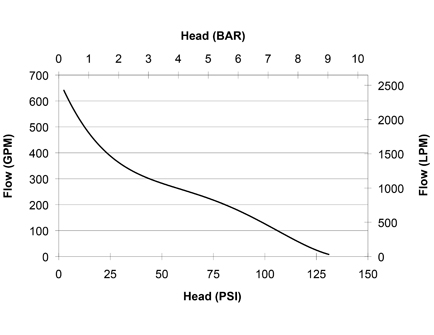

PERFORMANCE

475 GPM @ 10 PSI

390 GPM @ 25 PSI

210 GPM @ 75 PSI

140 GPM @ 100 PSI

25 GPM @ 125 PSI

LIMITED WARRANTY

  • 3 YEARS
