Portable Pumps
PFP-21HP-DSL-MR
DIESEL POWERED PUMP
The MR version gives you more pressure to meet the requirements of an initial attack
Also available in skid version
ENGINE SPECIFICATIONS
- D722 Kubota liquid cooled engine
- 3-cylinder, 4-stroke diesel engine
- 12V electric start
- Alternator capacity: 12V - 12.5A (150W)
INCLUDED ACCESSORIES AND CONTROL PANEL
- 12-V battery
- Engine ignition switch
- Throttle control vernier
- Operating panel light
- Pilot lights
- Inlet an outlet pressure gauges
- Priming valve
- Engine stop knob
PUMP UNIT SPECIFICATIONS
- C.E.T. single stage centrifugal pump
- Pump body made from salt water resistant aluminum alloy
- Bronze impeller
- Mechanical shaft seal
- Stainless steel pump shaft
- Exhaust priming system, guaranteed up to 15’ (4.6 meter) lift
- One 1 1⁄2" (38 mm) delivery outlet with Fire Type swing-out valve
- One 2 1⁄2" (65 mm) suction inlet
- Dimensions: Length: 32” (813 mm); Width: 27” (686 mm); Height: 33” (838 mm)
- Wet weight: 325 lbs (148 kg)

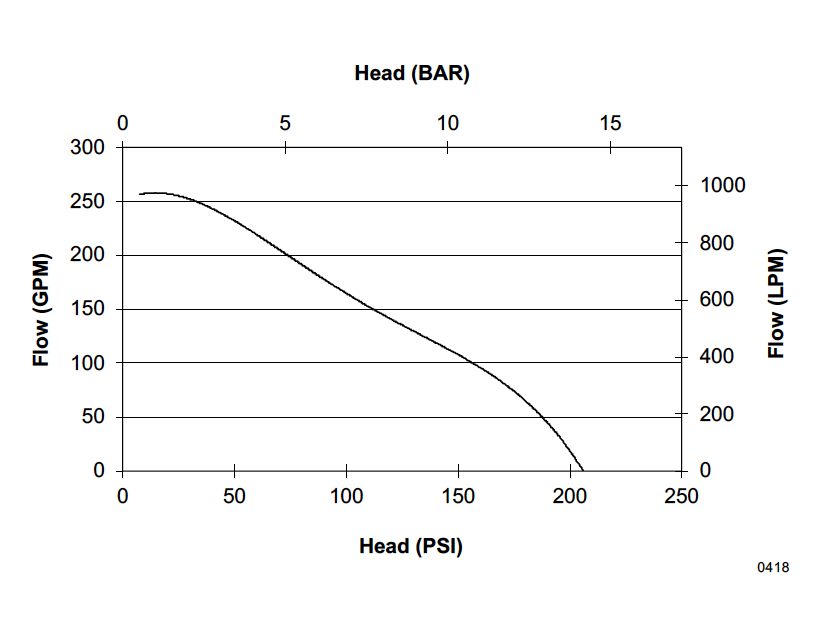

PERFORMANCE
MAX FLOW : 250 GPM
MAX PRESSURE : 190 PSI
230 GPM @ 50 PSI
165 GPM @ 100 PSI
110 GPM @ 150 PSI
LIMITED WARRANTY
- 3 YEARS
