PFP-20HPKHL-HP

PRESSURE AND VOLUME PUMP

This high pressure Kohler pump goes up to 300 psi. Engine and pump are mounted on a protec- tive frame made of steel with shock absorbent and folding handles

Also Available in skid version

ENGINE SPECIFICATIONS

  • CH640 Kohler air cooled engine
  • V-Twin cylinder, 4-stroke gasoline engine
  • 12V electric start with recoil start as backup
  • 6 gallon (22 l) detachable fuel tank. The fuel tank is made from plastic
  • 20 amp. charging, regulated

INCLUDED ACCESSORIES

  • Pressure gauge
  • 12-V battery

PUMP UNIT SPECIFICATIONS

  • Transmission drive C.E.T. single stage centrifugal pump
  • Pump body made from resistant aluminum alloy
  • Bronze impeller
  • Mechanical shaft seal
  • Stainless steel pump shaft
  • Belt drive transmission
  • Exhaust priming system, guaranteed up to 15’ (4.5 meter) lift
  • One 1 1 ⁄2" (38mm) delivery outlet with Fire Type swing-out valve
  • One 2 1 ⁄2" (65mm) suction inlet
  • Dimensions: Length: 22” (558 mm); Width: 25” (635 mm); Height: 23” (584 mm)
  • Weight: 180 lbs (81 kg)

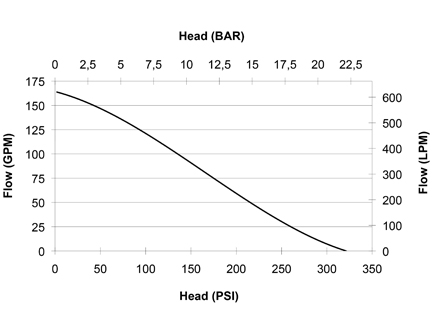

PERFORMANCE

160 GPM (605 LPM) @ 50 PSI

125 GPM (473 LPM) @ 100 PSI

90 GPM (340 LPM) @ 150 PSI

60 GPM (227 LPM) @ 200 PSI

30 GPM (113 LPM) @ 250 PSI

LIMITED WARRANTY

  • 3 YEARS
