The Flow Starts Here. Powerful, Portable, Pumps | CET Firepump
- Product Header Image: images/firepump/stroke-5.png
-
Product Image:
- Category Product: Portable Pumps
-
Pdf / Print file:

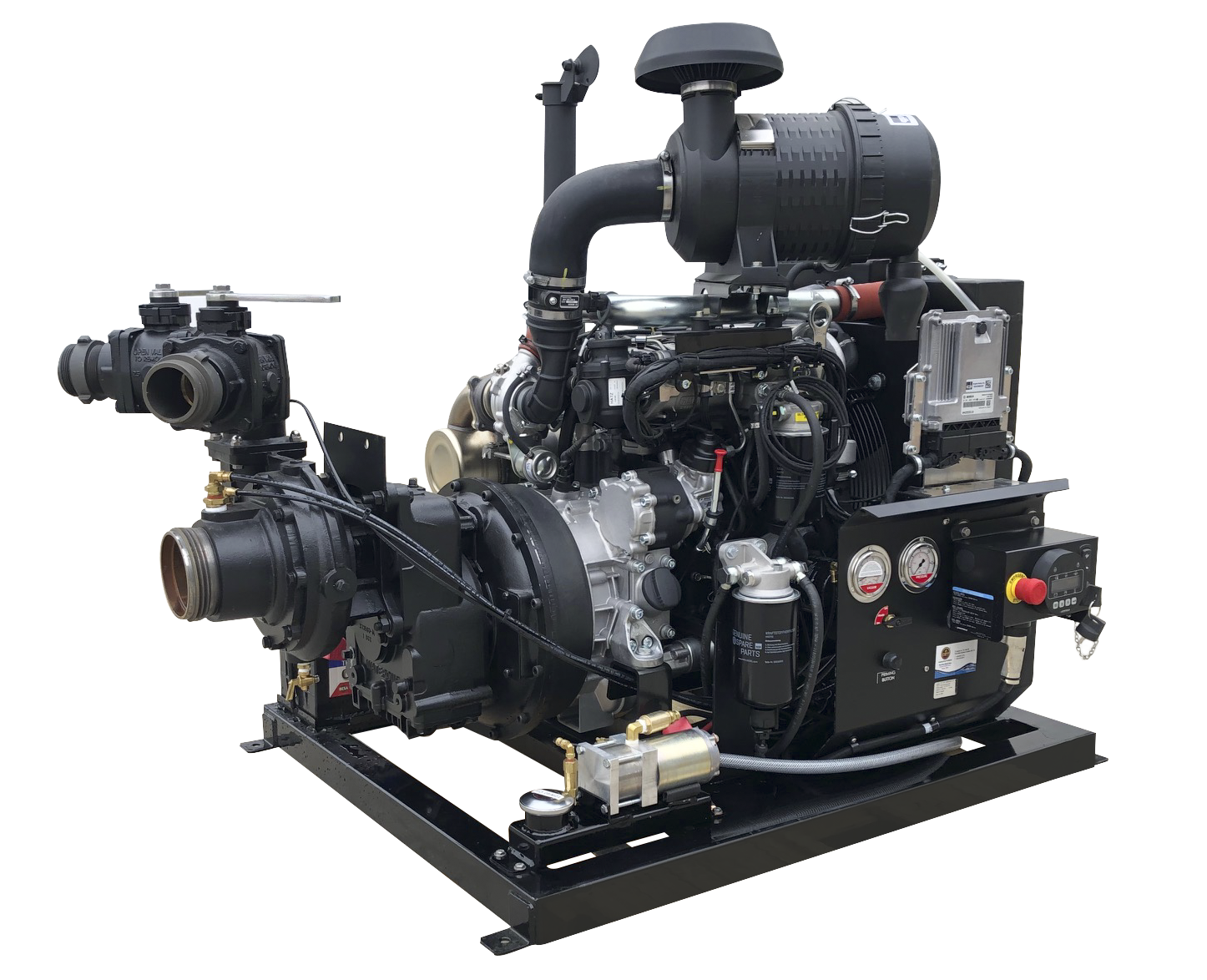

- Product Title: PFP-56HP-DSL
- Product Details: This high pressure/high volume pump is made to fight fire or supply water to the fire scene. Engine and pump are mounted on a skid chassis.
- 1st Title of the second section: ENGINE SPECIFICATIONS
-
Engine specifications list:
- Hatz developing 56hp at 2600 RPM, water cooled with internal system, 4-cylinder, diesel engine.
- 12V electric start.
- 6 gallons capacity fuel tank, sufficient for 2 hours continuous operation approximately, made of plastic, with filling neck and lid.
- 2nd Title of the second section: CONTROL PANEL
-
included accessories list:
- Engine key switch
- Throttle control knob
- Push priming button
- Pressure gauge
- Vacuum gauge
- 3rd Title of the second section: PUMP UNIT SPECIFICATIONS
-
pump specifications list:
- Single stage centrifugal pump.
- Pump body made from resistant aluminum alloy.
- Bronze impellers.
- Mechanical shaft seal.
- Stainless steel pump shaft.
- Electric priming system, guaranteed up to 20’ (6 meter) lift.
- Two 2 1/2” (65 mm) delivery outlets.
- One 4” (100 mm) suction inlet.
- Dimensions: Length: 55'' (1397 mm); Width: 39-13/16'' (991 mm); Height: 43-9/16'' (1106 mm).
- Weight: 950 lbs (431 kg)
- 1st Title of the third section: PERFORMANCE
- Specification 20: MAX FLOW : 730 GPM
- Specification 21: MAX PRESSURE : 175 PSI
- Specification 22: 725 GPM @ 25 PSI
- Specification 23: 700 GPM @ 50 PSI
- Specification 24: 575 GPM @ 100 PSI
- Specification 24-2: 400 GPM @ 150 PSI
-
Performance Schema:
- 2nd Title of the third section: LIMITED WARRANTY
- Specification 25: 2 YEARS
- 1st Title of the fourth section: DOWNLOADS
- Download Name 1: Download the Assembly Drawings
- Download Name 2: Download the Engine Manual
-
download-link2:
- Download Name 3: Download the Instructions Manual
-
download-link3:
- Download Name 4: Priming and Maintenance Videos
- Video link 4: https://www.fire-pump.com/about-us/video-gallery
- HP: 56
- Max Flow: 730
- Max Pressure: 175
- Weight: 0
- Product Header Image: images/firepump/stroke-5.png
-
Product Image:
- Category Product: Portable Pumps
-
Pdf / Print file:

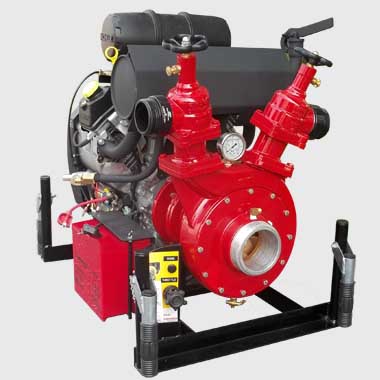

- Product Title: PFP-38HPKHL-MF
- Sub Product Title: GAS POWERED PUMP
- Product Details: This high pressure/high volume pump is made to fight fire or supply water to the fire scene. Engine and pump are mounted on a chassis made of profile steel with shock absorbers and heavy duty carrying handles
- 1st Title of the second section: ENGINE SPECIFICATIONS
-
Engine specifications list:
- CH1000 Kohler air cooled engine
- 2-cylinder, 4-stroke gasoline engine
- 12V electric start
- 6 gallon (22 L) detachable fuel tank
- 2nd Title of the second section: INCLUDED ACCESSORIES
-
included accessories list:
- 25 Amps alternator
- Vernier throttle
- 12-V Battery
- Choke control lever
- Pressure gauge
- 3rd Title of the second section: PUMP UNIT SPECIFICATIONS
-
pump specifications list:
- C.E.T. single stage centrifugal pump
- Pump body made from high resistant aluminum alloy
- Bronze impeller
- Mechanical shaft seal
- Stainless steel pump shaft
- Exhaust priming system, guaranteed up to 20’(6 meter lift)
- Two 2 1⁄2’’ (65 mm) delivery outlet with pressure valve
- One 4’’ (100 mm) suction inlet
- Dimensions: Length: 34’’ (865 mm); Width: 24’’ (610 mm); Height: 31’’ (788 mm)
- Weight: 280 lbs (127 Kg)
- 1st Title of the third section: PERFORMANCE
- Specification 20: MAX FLOW : 680 GPM
- Specification 21: MAX PRESSURE : 205 PSI
- Specification 22: 515 GPM @ 25 PSI
- Specification 23: 180 GPM @ 150 PSI
- Specification 24: 50 GPM @ 200 PSI
-
Performance Schema:
- 2nd Title of the third section: LIMITED WARRANTY
- Specification 25: 2 YEARS
- 1st Title of the fourth section: DOWNLOADS
- Download Name 1: Download the Assembly Drawings
-
download-link1:
- Download Name 2: Download the Engine Manual
-
download-link2:
- Download Name 3: Download the Instructions Manual
-
download-link3:
- Download Name 4: Priming and Maintenance Videos
- Video link 4: /about-us/video-gallery
- HP: 38
- Max Flow: 680
- Max Pressure: 205
- Weight: 280
- Product Header Image: images/firepump/stroke-5.png
-
Product Image:
- Category Product: Portable Pumps
-
Pdf / Print file:

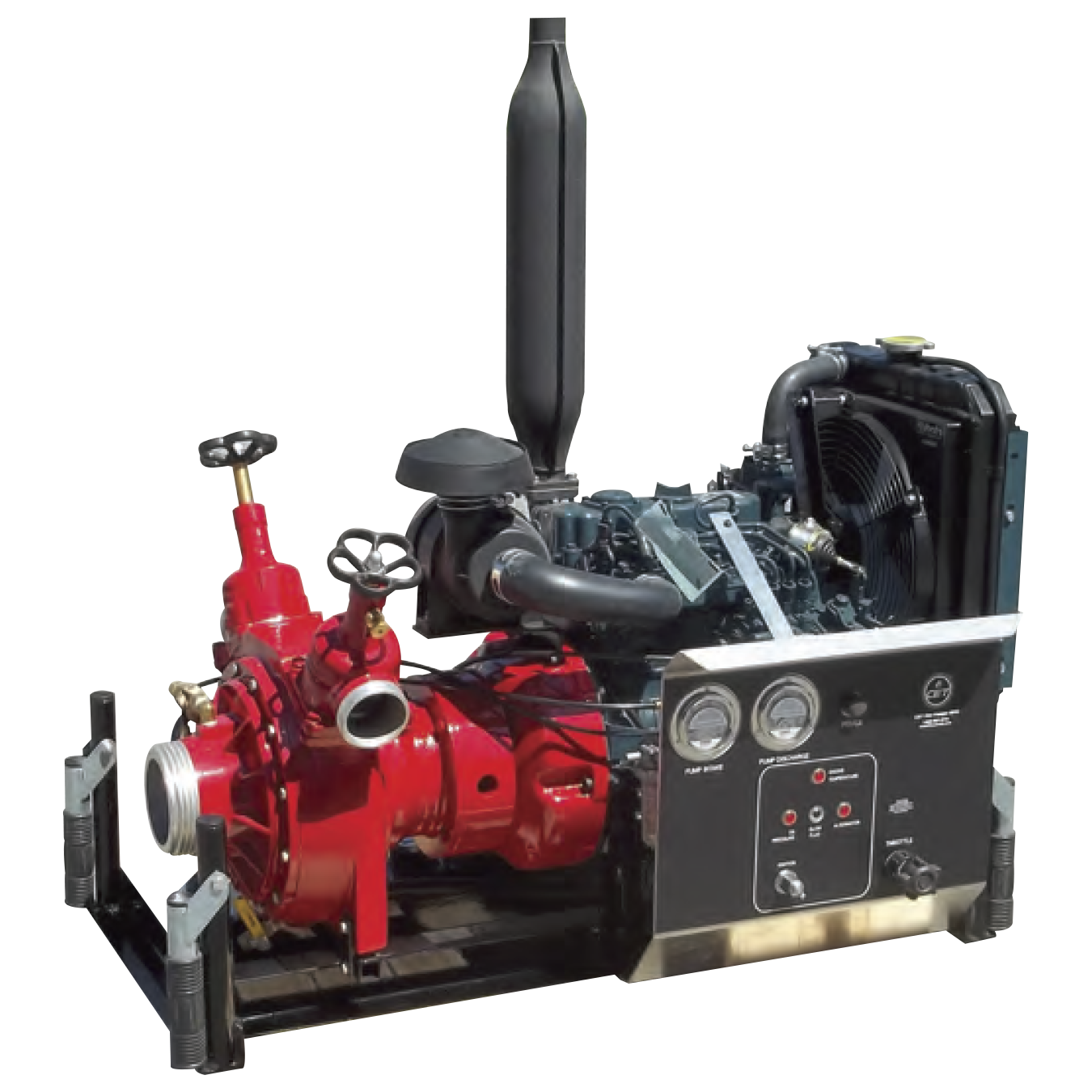

- Product Title: PFP-25HP-DSL
- Sub Product Title: DIESEL POWERED PUMP
- Product Details: This high pressure/high volume pump is made to fight fires or supply water to the fire scene. The engine and pump are mounted on a steel protective frame with folding handles
- Additional informations: Also available in skid version
- 1st Title of the second section: ENGINE SPECIFICATIONS
-
Engine specifications list:
- D902 Kubota liquid cooled engine
- 3-cylinder, diesel engine
- Electric start
- 6 gallon (22 l) detachable fuel tank
- 2nd Title of the second section: CONTROL PANEL
-
included accessories list:
- Engine start/stop button
- Throttle control lever
- Operating panel light
- Pilot lights
- Pressure gauge
- Vacuum pressure gauge
- 3rd Title of the second section: PUMP UNIT SPECIFICATIONS
-
pump specifications list:
- C.E.T. two stage centrifugal pump
- Pump body made from high resistance aluminum alloy
- Bronze impellers
- Mechanical shaft seal
- Stainless steel pump shaft
- Electric priming system, guaranteed up to 20’ (6 meter) lift
- Two 2 1/2” (65 mm) delivery outlets
- One 4” (100 mm) suction inlet
- Dimensions: Length: 40 1⁄4” (1022 mm); Width: 23 1⁄2” (596 mm); Height: 26 5⁄8” (676 mm)
- Weight: 350 lbs (160 kg)
- 1st Title of the third section: PERFORMANCE
- Specification 20: 340 GPM @ 25 PSI
- Specification 21: 260 GPM @ 50 PSI
- Specification 22: 180 GPM @ 75 PSI
- Specification 23: 115 GPM @ 100 PSI
- Specification 24: 60 GPM @ 125 PSI
-
Performance Schema:
- 2nd Title of the third section: LIMITED WARRANTY
- Specification 25: 3 YEARS
- 1st Title of the fourth section: DOWNLOADS
- Download Name 1: Download the Assembly Drawings
-
download-link1:
- Download Name 2: Download the Engine Manual
-
download-link2:
- Download Name 3: Download the Instructions Manual
-
download-link3:
- Download Name 4: Priming and Maintenance Videos
- Video link 4: /about-us/video-gallery
- HP: 25
- Max Flow: 340
- Max Pressure: 125
- Weight: 350
- Product Header Image: images/firepump/stroke-5.png
-
Product Image:
- Category Product: Portable Pumps
-
Pdf / Print file:

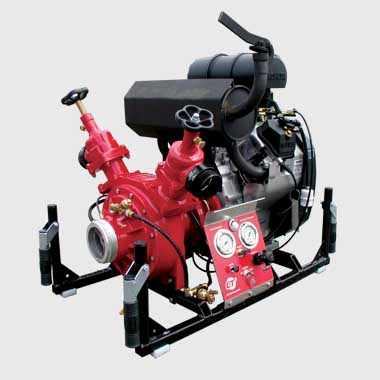

- Product Title: PFP-38HPKHL-2D
- Sub Product Title: GAS POWERED PUMP
- Product Details: This high pressure/high volume pump is made to fight fire or supply water to the fire scene. Engine and pump are mounted on a chassis made of profile steel with shock absorbers and 4 heavy duty carrying handles
- Additional informations: Also available in skid version
- 1st Title of the second section: ENGINE SPECIFICATIONS
-
Engine specifications list:
- CH1000 Kohler air cooled engine
- 2-cylinder, 4-stroke gasoline engine
- 12V electric start
- 6 gallon (22 l) detachable fuel tank
- 2nd Title of the second section: CONTROL PANEL
-
included accessories list:
- Engine start/stop button
- Throttle control lever
- Choke control lever
- Oil control lamp
- Operating panel light
- Pressure gauge
- Vacuum pressure gauge
- 3rd Title of the second section: PUMP UNIT SPECIFICATIONS
-
pump specifications list:
- C.E.T. is using the new technology fo a dual stage centrifugal pump
- Pump body made from resistant aluminum alloy
- Bronze impellers
- Mechanical shaft seal
- Stainless steel pump shaft
- Exhaust priming system, guaranteed up to 20’ (6 meter) lift
- Two 2 1/2” (65 mm) delivery outlets
- One 4” (100 mm) suction inlet
- Dimensions: Length: 37” (940 mm) Width: 26” (660 mm); Height: 31” (787 mm)
- Weight: 275 lbs (125 kg)
- 1st Title of the third section: PERFORMANCE
- Specification 20: MAX FLOW : 675 GPM
- Specification 21: MAX PRESSURE : 190 PSI
- Specification 22: 465 GPM @ 25 PSI
- Specification 23: 380 GPM @ 50 PSI
- Specification 24: 225 GPM @ 100 PSI
-
Performance Schema:
- 2nd Title of the third section: LIMITED WARRANTY
- Specification 25: 3 YEARS
- 1st Title of the fourth section: DOWNLOADS
- Download Name 1: Download the Assembly Drawings
-
download-link1:
- Download Name 2: Download the Engine Manual
-
download-link2:
- Download Name 3: Download the Instructions Manual
-
download-link3:
- Download Name 4: Priming and Maintenance Videos
- Video link 4: /about-us/video-gallery
- HP: 38
- Max Flow: 675
- Max Pressure: 190
- Weight: 275
