The Flow Starts Here. Powerful, Portable, Pumps | CET Firepump
- Product Header Image: images/firepump/stroke-5.png
-
Product Image:
- Category Product: Portable Pumps
-
Pdf / Print file:
- Product Title: PFP-6HPVGD-M-TWIN
- Sub Product Title: BRIGGS & STRATTON POWERED PUMP
- Product Details: The Goliath model is a compact pump that delivers amazing pressure performance so as to meet the needs of several applications.
- Additional informations: Also available in skid version
- 1st Title of the second section: ENGINE SPECIFICATIONS
-
Engine specifications list:
- Vanguard, model 130000, air cooled engine
- Single cylinder, 4-stroke gasoline engine
- Manual recoil start
- 0.8 gallon (3.1 l) integrated fuel tank
- 2nd Title of the second section: INCLUDED ACCESSORIES
-
included accessories list:
- Low oil level shut-off sensor
- 3rd Title of the second section: PUMP UNIT SPECIFICATIONS
-
pump specifications list:
- C.E.T. dual stage centrifugal pump
- Pump body made from aluminum
- Aluminum impeller
- Mechanical shaft seal
- Self priming system
- Two 1” (25 mm) delivery outlets and one 1 1⁄2” (38 mm) NPSH delivery outlet
- One 1 1⁄2” (38 mm) NPSH suction inlet
- Dimensions: Length: 24-1/2” (622 mm); Width: 16” (406 mm); Height: 17” (432 mm)
- Wet weight: 79 lbs (36 Kg)
- 1st Title of the third section: PERFORMANCE
- Specification 20: MAX FLOW: 65 GPM
- Specification 21: MAX PRESSURE : 130 PSI
- Specification 22: 60 GPM @ 10 PSI
- Specification 23: 55 GPM @ 50 PSI
- Specification 24: 40 GPM @ 100 PSI
- Specification 24-2: 25 GPM @ 125 PSI
-
Performance Schema:
- 2nd Title of the third section: LIMITED WARRANTY
- Specification 25: 3 YEARS
- 1st Title of the fourth section: DOWNLOADS
- Download Name 1: Download the Assembly Drawings
- Download Name 2: Download the Engine Manual
- Download Name 3: Download the Instructions Manual
- Download Name 4: Priming and Maintenance Videos
- Video link 4: /about-us/video-gallery
- HP: 6
- Max Flow: 65
- Max Pressure: 130
- Weight: 79
- Product Header Image: images/firepump/stroke-5.png
-
Product Image:
- Category Product: Portable Pumps
-
Pdf / Print file:

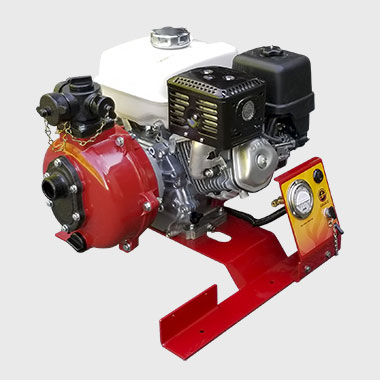

- Product Title: SM-PFP-9HPHND-EM-TWIN
- Sub Product Title: HONDA POWERED PUMP
- Product Details: The Goliath model is a compact pump that delivers amazing pressure performance so as to meet the needs of several applications.
- Additional informations: Also available in portable version
- 1st Title of the second section: ENGINE SPECIFICATIONS
-
Engine specifications list:
- GX270 Honda air cooled engine
- Single cylinder, 4-stroke gasoline engine
- 12V electric start with recoil start as backup
- 1.4 gallon (5.3 l) integrated fuel tank
- 2nd Title of the second section: INCLUDED ACCESSORIES
-
included accessories list:
- Low oil alert
- 3rd Title of the second section: PUMP UNIT SPECIFICATIONS
-
pump specifications list:
- C.E.T. dual stage centrifugal pump
- Pump body made from aluminum
- Aluminum impeller
- Mechanical shaft seal
- Self priming system
- Two 1” (25 mm) delivery outlets and one 1 1⁄2” (38 mm)NPSH delivery outlet
- One 1 1⁄2” (38 mm) NPSH suction inlet
- Dimensions: Length: 20 1⁄2” (520 mm); Width: 24” (610 mm); Height: 19” (480 mm)
- Wet weight: 110 lbs (50 kg)
- 1st Title of the third section: PERFORMANCE
- Specification 20: 70 GPM @ 10 PSI
- Specification 21: 60 GPM @ 50 PSI
- Specification 22: 55 GPM @ 100 PSI
- Specification 23: 40 GPM @ 125 PSI
- Specification 24: MAX FLOW: 75 GPM
- Specification 24-2: MAX PRESSURE: 140 PSI
-
Performance Schema:
- 2nd Title of the third section: LIMITED WARRANTY
- Specification 25: 3 YEARS
- 1st Title of the fourth section: DOWNLOADS
- Download Name 1: Download the Assembly Drawings
-
download-link1:
- Download Name 2: Download the Engine Manual
-
download-link2:
- Download Name 3: Download the Instructions Manual
- Download Name 4: Priming and Maintenance Videos
- Video link 4: /about-us/video-gallery
- HP: 9
- Max Flow: 75
- Max Pressure: 140
- Weight: 110
- Product Header Image: images/firepump/stroke-5.png
-
Product Image:
- Category Product: Portable Pumps
-
Pdf / Print file:

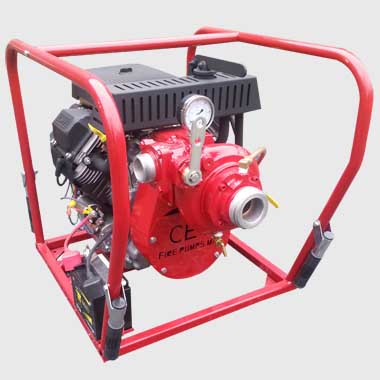

- Product Title: PFP-20HPKHL-HP
- Sub Product Title: PRESSURE AND VOLUME PUMP
- Product Details: This high pressure Kohler pump goes up to 300 psi. Engine and pump are mounted on a protec- tive frame made of steel with shock absorbent and folding handles
- Additional informations: Also Available in skid version
- 1st Title of the second section: ENGINE SPECIFICATIONS
-
Engine specifications list:
- CH640 Kohler air cooled engine
- V-Twin cylinder, 4-stroke gasoline engine
- 12V electric start with recoil start as backup
- 6 gallon (22 l) detachable fuel tank. The fuel tank is made from plastic
- 20 amp. charging, regulated
- 2nd Title of the second section: INCLUDED ACCESSORIES
-
included accessories list:
- Pressure gauge
- 12-V battery
- 3rd Title of the second section: PUMP UNIT SPECIFICATIONS
-
pump specifications list:
- Transmission drive C.E.T. single stage centrifugal pump
- Pump body made from resistant aluminum alloy
- Bronze impeller
- Mechanical shaft seal
- Stainless steel pump shaft
- Belt drive transmission
- Exhaust priming system, guaranteed up to 20’ (6 meter) lift
- One 1 1 ⁄2" (38mm) delivery outlet with Fire Type swing-out valve
- One 2 1 ⁄2" (65mm) suction inlet
- Dimensions: Length: 22” (558 mm); Width: 25” (635 mm); Height: 23” (584 mm)
- Weight: 180 lbs (81 kg)
- 1st Title of the third section: PERFORMANCE
- Specification 20: 160 GPM (605 LPM) @ 50 PSI
- Specification 21: 125 GPM (473 LPM) @ 100 PSI
- Specification 22: 90 GPM (340 LPM) @ 150 PSI
- Specification 23: 60 GPM (227 LPM) @ 200 PSI
- Specification 24: 30 GPM (113 LPM) @ 250 PSI
-
Performance Schema:
- 2nd Title of the third section: LIMITED WARRANTY
- Specification 25: 3 YEARS
- 1st Title of the fourth section: DOWNLOADS
- Download Name 1: Download the Assembly Drawings
-
download-link1:
- Download Name 2: Download the Engine Manual
-
download-link2:
- Download Name 3: Download the Instructions Manual
-
download-link3:
- Download Name 4: Priming and Maintenance Videos
- Video link 4: /about-us/video-gallery
- HP: 20
- Max Flow: 160
- Max Pressure: 275
- Weight: 180
- Product Header Image: images/firepump/stroke-5.png
-
Product Image:
- Category Product: Portable Pumps
-
Pdf / Print file:

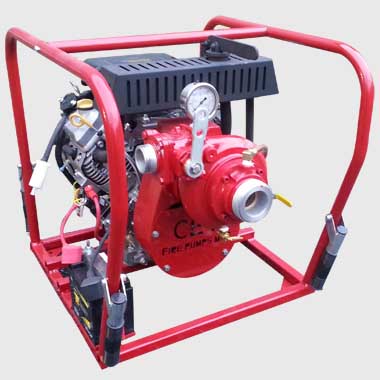

- Product Title: PFP-23HPVGD-HP
- Sub Product Title: HIGH PRESSURE PUMP
- Product Details: This high pressure Vanguard pump goes up to 300 psi. Engine and pump are mounted on a protective frame made of steel with shock absorbent and folding handles
- Additional informations: Also available in skid version
- 1st Title of the second section: ENGINE SPECIFICATIONS
-
Engine specifications list:
- Vanguard, model 380000, air cooled engine
- V-Twin cylinder, 4-stroke gasoline engine
- 12V electric start with recoil start as backup
- 6 gallon (22 l) detachable fuel tank
- 2nd Title of the second section: INCLUDED ACCESSORIES
-
included accessories list:
- 17 Amps alternator
- Low oil alert
- Pressure gauge
- 12-V battery
- 3rd Title of the second section: PUMP UNIT SPECIFICATIONS
-
pump specifications list:
- Transmission drive C.E.T. single stage centrifugal pump
- Pump body made from resistant aluminum alloy
- Bronze impeller
- Mechanical shaft seal
- Stainless steel pump shaft
- Belt drive transmission
- Exhaust priming system, guaranteed up to 20’ (6 meter) lift
- One 1-1/2'' delivery outlet with Fire Type swing-out valve
- One 2 1⁄2” (65 mm) suction inlet
- Dimensions: Length: 27-1/2'' (700 mm). Width: 22'' (560 mm); Height: 24'' (610 mm)
- Weight: 165 lbs (75 kg)
- 1st Title of the third section: PERFORMANCE
- Specification 20: 140 GPM @ 50 PSI
- Specification 21: 125 GPM @ 100 PSI
- Specification 22: 90 GPM @ 150 PSI
- Specification 23: 60 GPM @ 200 PSI
- Specification 24: 25 GPM @ 275 PSI
-
Performance Schema:
- 2nd Title of the third section: LIMITED WARRANTY
- Specification 25: 3 YEARS
- 1st Title of the fourth section: DOWNLOADS
- Download Name 1: Download the Assembly Drawings
-
download-link1:
- Download Name 2: Download the Engine Manual
-
download-link2:
- Download Name 3: Download the Instructions Manual
-
download-link3:
- Download Name 4: Priming and Maintenance Videos
- Video link 4: /about-us/video-gallery
- HP: 23
- Max Flow: 140
- Max Pressure: 275
- Weight: 165
- Product Header Image: images/firepump/stroke-5.png
-
Product Image:
- Category Product: Portable Pumps
-
Pdf / Print file:

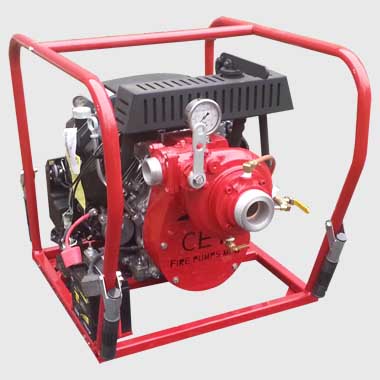

- Product Title: PFP-20HPHND-HP
- Sub Product Title: HIGH PRESSURE PUMP
- Product Details: This high pressure Honda pump goes up to 300 psi. Engine and pump are mounted on a protective frame made of steel with shock absorbent and folding handles
- Additional informations: Also available in skid version
- 1st Title of the second section: ENGINE SPECIFICATIONS
-
Engine specifications list:
- GX630 Honda air cooled engine
- V-Twin cylinder, 4-stroke gasoline engine
- 12V electric start
- 6 gallon (22 l) detachable fuel tank. The fuel tank is made from plastic
- 2nd Title of the second section: INCLUDED ACCESSORIES
-
included accessories list:
- 17 Amps alternator
- Low oil alert
- Pressure gauge
- 12-V battery
- 3rd Title of the second section: PUMP UNIT SPECIFICATIONS
-
pump specifications list:
- Transmission drive C.E.T. single stage centrifugal pump
- Pump body made from resistant aluminum alloy
- Bronze impeller
- Mechanical shaft seal
- Stainless steel pump shaft
- Belt drive transmission
- Exhaust priming system, guaranteed up to 20’ (6 meter) lift
- One 1-1/2'' (38 mm) delivery outlet with Fire Type swing-out valve
- One 2 1⁄2” (65 mm) suction inlet
- Dimensions: Length: 27-1/2'' (700 mm); Width: 22'' (560 mm); Height: 24'' (610 mm)
- Weight: 185 lbs (84 kg)
- 1st Title of the third section: PERFORMANCE
- Specification 20: 140 GPM @ 50 PSI
- Specification 21: 125 GPM @ 100 PSI
- Specification 22: 100 GPM @ 150 PSI
- Specification 23: 40 GPM @ 250 PSI
- Specification 24: 25 GPM @ 275 PSI
-
Performance Schema:
- 2nd Title of the third section: LIMITED WARRANTY
- Specification 25: 3 YEARS
- 1st Title of the fourth section: DOWNLOADS
- Download Name 1: Download the Assembly Drawings
-
download-link1:
- Download Name 2: Download the Engine Manual
-
download-link2:
- Download Name 3: Download the Instructions Manual
-
download-link3:
- Download Name 4: Priming and Maintenance Videos
- Video link 4: /about-us/video-gallery
- HP: 20
- Max Flow: 140
- Max Pressure: 275
- Weight: 185
