The Flow Starts Here. Powerful, Portable, Pumps | CET Firepump
- Product Header Image: images/firepump/stroke-5.png
-
Product Image:
- Category Product: Portable Pumps
-
Pdf / Print file:

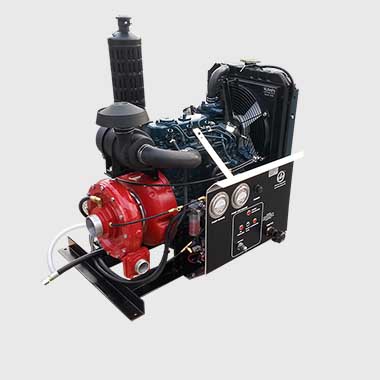

- Product Title: SM-PFP-25hp-DSL-MR
- Sub Product Title: DIESEL POWERED PUMP
- Product Details: The MR version gives you more pressure to meet the requirements of an initial attack
- Additional informations: Also available in portable version
- 1st Title of the second section: ENGINE SPECIFICATIONS
-
Engine specifications list:
- D902 Kubota liquid cooled engine
- Alternator capacity: 12V-40A (480W)
- 3-cylinder, 4-stroke diesel engine
- Electric start
- 2nd Title of the second section: PUMP UNIT SPECIFICATIONS
-
included accessories list:
- C.E.T. single stage centrifugal pump
- Pump body made from high resistance aluminum alloy
- Bronze impellers
- Mechanical shaft seal
- Stainless steel pump shaft
- Electric priming system, guaranteed up to 20’ (6 meter) lift
- One 1 1⁄2" (38mm) NPT-M delivery outlet flange
- One 2 1⁄2" (65mm) suction inlet
- Dimensions: Length: 29 1/2'' (750 mm); Width: 26'' (660 mm); Height: 33'' (838 mm)
- Wet weight: 308 lbs (140 kg)
- 3rd Title of the second section: INCLUDED ACCESSORY AND CONTROL PANEL
-
pump specifications list:
- Quick connect for 12-V battery
- Engine start/stop switch
- Throttle control lever
- Operating panel light
- Pilot lights
- Pressure gauge
- Vacuum pressure gauge
- Priming button
- 1st Title of the third section: PERFORMANCE
- Specification 20: 315 GPM @ 10 PSI
- Specification 21: 300 GPM @ 50 PSI
- Specification 22: 230 GPM @ 100 PSI
- Specification 23: 145 GPM @ 150 PSI
- Specification 24: 105 GPM @ 175 PSI
-
Performance Schema:
- 2nd Title of the third section: LIMITED WARRANTY
- Specification 25: 3 YEARS
- 1st Title of the fourth section: DOWNLOADS
- Download Name 1: Download the Assembly Drawings
-
download-link1:
- Download Name 2: Download the Engine Manual
-
download-link2:
- Download Name 3: Download the Instructions Manual
-
download-link3:
- Download Name 4: Priming and Maintenance Videos
- Video link 4: /about-us/video-gallery
- HP: 25
- Max Flow: 315
- Max Pressure: 175
- Weight: 308
- Product Header Image: images/firepump/stroke-5.png
-
Product Image:
- Category Product: Portable Pumps
-
Pdf / Print file:

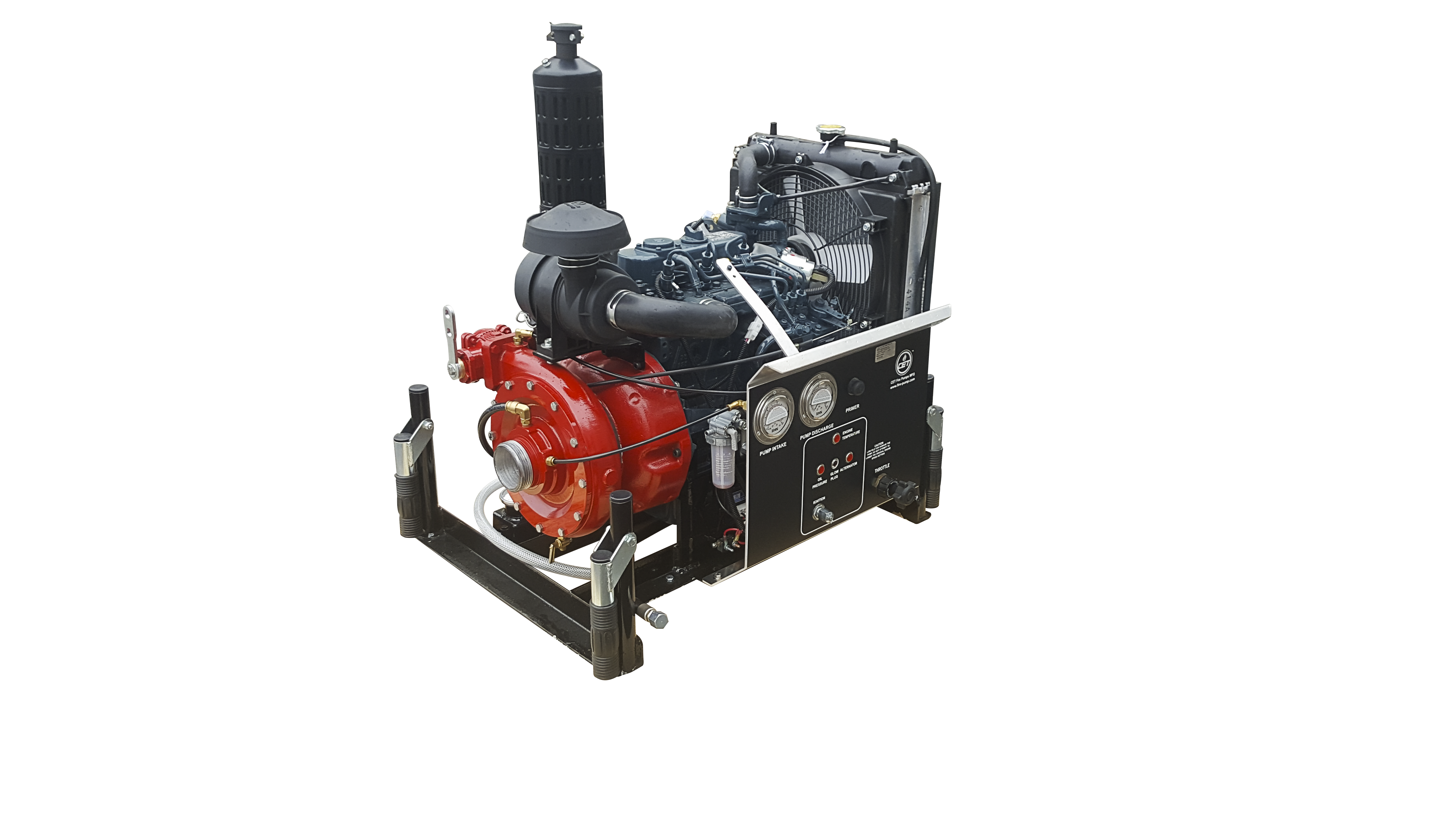

- Product Title: PFP-25HP-DSL-MR
- Sub Product Title: DIESEL POWERED PUMP
- Product Details: The MR version gives you more essure to meet the requirements of an initial attack
- Additional informations: Also available in skid version
- 1st Title of the second section: ENGINE SPECIFICATIONS
-
Engine specifications list:
- D902 Kubota liquid cooled engine
- 3-cylinder, 4-stroke diesel engine
- Electric start
- 6 gallon (22 l) detachable fuel tank
- Alternator 12V - 40A
- 2nd Title of the second section: CONTROL PANEL
-
included accessories list:
- Engine start/stop button
- Throttle control lever
- Operating panel light
- Pilot lights
- Pressure gauge
- Vacuum pressure gauge
- 3rd Title of the second section: PUMP UNIT SPECIFICATIONS
-
pump specifications list:
- C.E.T. single stage centrifugal pump
- Pump body made from high resistance aluminum alloy
- Bronze impellers
- Mechanical shaft seal
- Stainless steel pump shaft
- Electric priming system, guaranteed up to 20’ (6 meter) lift
- One 1 1⁄2" (38mm) delivery outlet with Fire Type swing-out valve
- One 2 1⁄2" (65mm) suction inlet
- Dimensions: Length: 31'' (787 mm);
- Width: 26'' (660 mm);
- Height: 31-1/2'' (800 mm).
- Wet weight: 360 lbs (163 kg)
- 1st Title of the third section: PERFORMANCE
- Specification 20: 315 GPM @ 10 PSI
- Specification 21: 300 GPM @ 50 PSI
- Specification 22: 230 GPM @ 100 PSI
- Specification 23: 145 GPM @ 150 PSI
- Specification 24: 105 GPM @ 175 PSI
-
Performance Schema:
- 2nd Title of the third section: LIMITED WARRANTY
- Specification 25: 3 YEARS
- 1st Title of the fourth section: DOWNLOADS
- Download Name 1: Download the Assembly Drawings
-
download-link1:
- Download Name 2: Download the Engine Manual
-
download-link2:
- Download Name 3: Download the Instructions Manual
-
download-link3:
- Download Name 4: Priming and Maintenance Videos
- Video link 4: /about-us/video-gallery
- HP: 25
- Max Flow: 315
- Max Pressure: 175
- Weight: 320
- Product Header Image: images/firepump/stroke-5.png
-
Product Image:
- Category Product: Portable Pumps
-
Pdf / Print file:
- Product Title: PFP-23HPVGD-MR
- Sub Product Title: VANGUARD POWERED PRESSURE AND VOLUME PUMP
- Product Details: This pressure/volume pump is the most suitable for drop-in units. The engine and pump are mounted on a steel protective frame with folding handles
- Additional informations: Also available in skid version
- 1st Title of the second section: ENGINE SPECIFICATIONS
-
Engine specifications list:
- Vanguard, model 380000, air cooled engine
- V-Twin cylinder, 4-stroke gasoline engine
- Electric start with recoil start as backup
- 6 gallon (22 l) detachable fuel tank
- 2nd Title of the second section: INCLUDED ACCESSORIES
-
included accessories list:
- 20 Amps alternator
- Pressure gauge
- Low oil alert
- 12-V battery
- 3rd Title of the second section: PUMP UNIT SPECIFICATIONS
-
pump specifications list:
- C.E.T. single stage centrifugal pump
- Pump body made from high resistance aluminum alloy
- Bronze impeller
- Mechanical shaft seal
- Exhaust priming system, guaranteed up to 20’ (6 meter) lift
- One 1 1/2" (38mm) delivery outlet with Fire Type swing-out valve
- One 2 1/2" (65mm) suction inlet
- Dimensions: Length: 21 1/4” (540 mm); Width: 26 1/2” (673 mm); Height: 24” (610 mm)
- Weight: 165.2 lbs (75 kg)
- 1st Title of the third section: PERFORMANCE
- Specification 20: MAX FLOW: 300 GPM
- Specification 21: MAX PRESSURE: 250 PSI
- Specification 22: 265 GPM @ 50 PSI
- Specification 23: 195 GPM @ 100 PSI
- Specification 24: 150 GPM @ 150 PSI
- Specification 24-2: 80 GPM @ 200 PSI
-
Performance Schema:
- 2nd Title of the third section: LIMITED WARRANTY
- Specification 25: 3 YEARS
- 1st Title of the fourth section: DOWNLOADS
- Download Name 1: Download the Assembly Drawings
-
download-link1:
- Download Name 2: Download the Engine Manual
-
download-link2:
- Download Name 3: Download the Instructions Manual
-
download-link3:
- Download Name 4: Priming and Maintenance Videos
- Video link 4: /about-us/video-gallery
- HP: 23
- Max Flow: 300
- Max Pressure: 250
- Weight: 165.2
- Product Header Image: images/firepump/stroke-5.png
-
Product Image:
- Category Product: Portable Pumps
-
Pdf / Print file:
- Product Title: SM-PFP-23HPVGD-MR
- Sub Product Title: VANGUARD POWERED PRESSURE AND VOLUME PUMP
- Product Details: This pressure/volume pump is the most suitable for drop-in units. The engine and pump are mounted on skid frame. The skid version is easily mountable on vehicles and trailers
- Additional informations: Also available in portable version
- 1st Title of the second section: ENGINE SPECIFICATIONS
-
Engine specifications list:
- Vanguard, model 380000, air cooled engine
- V-Twin cylinder, 4-stroke gasoline engine
- Electric start with recoil start as backup
- 2nd Title of the second section: INCLUDED ACCESSORIES
-
included accessories list:
- 20 Amps alternator
- Pressure gauge
- Low oil alert
- Quick connect for 12-V battery
- 3rd Title of the second section: PUMP UNIT SPECIFICATIONS
-
pump specifications list:
- C.E.T. single stage centrifugal pump
- Pump body made from high resistance aluminum alloy
- Bronze impeller
- Mechanical shaft seal
- Exhaust priming system, guaranteed up to 20’ (6 meter) lift
- One 1 1⁄2" (38mm) NPT-M delivery outlet flange
- One 2 1/2" (65mm) suction inlet
- Dimensions: Length: 19 1/2” (500 mm); Width: 22 1/2” (570 mm); Height: 25 1/2” (650 mm)
- Weight: 147.4 lbs (67 kg)
- 1st Title of the third section: PERFORMANCE
- Specification 20: MAX FLOW : 300 GPM
- Specification 21: MAX PRESSURE : 235 PSI
- Specification 22: 265 GPM @ 50 PSI
- Specification 23: 150 GPM @ 150 PSI
- Specification 24: 80 GPM @ 200 PSI
-
Performance Schema:
- 2nd Title of the third section: LIMITED WARRANTY
- Specification 25: 3 YEARS
- 1st Title of the fourth section: DOWNLOADS
- Download Name 1: Download the Assembly Drawings
-
download-link1:
- Download Name 2: Download the Engine Manual
-
download-link2:
- Download Name 3: Download the Instructions Manual
- Download Name 4: Priming and Maintenance Videos
- Video link 4: /about-us/video-gallery
- HP: 23
- Max Flow: 300
- Max Pressure: 235
- Weight: 147.4
- Product Header Image: images/firepump/stroke-5.png
-
Product Image:
- Category Product: Portable Pumps
-
Pdf / Print file:

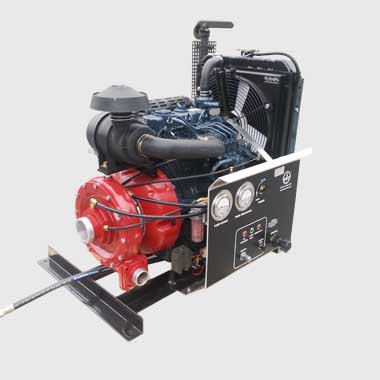

- Product Title: SM-PFP-21hp-DSL-MR
- Sub Product Title: DIESEL POWERED PUMP
- Product Details: The MR version gives you more pressure to meet the requirements of an initial attack
- Additional informations: Also available in portable version
- 1st Title of the second section: ENGINE SPECIFICATIONS
-
Engine specifications list:
- D722 Kubota liquid cooled engine
- 3-cylinder, 4-stroke diesel engine
- 12V electric start
- Alternator capacity: 12V-12.5A (150W)
- 2nd Title of the second section: INCLUDED ACCESSORIES AND CONTROL PANEL
-
included accessories list:
- Engine ignition switch
- Throttle control vernier
- Operating panel light
- Pilot lights
- Inlet and outlet pressure gauges
- Priming valve
- Engine stop knob
- 3rd Title of the second section: PUMP UNIT SPECIFICATIONS
-
pump specifications list:
- C.E.T. single stage centrifugal pump
- Pump body made from resistant aluminum alloy
- Bronze impeller
- Steel pump shaft
- Mechanical shaft seal
- Stainless steel pump shaft
- Exhaust priming system,guaranteed up to 15’ (4.6 meter) lift
- One 1 1⁄2" (38mm) NPT-M delivery outlet flange
- One 2 1⁄2" (65mm) suction inlet
- Dimensions: Length: 31'' (787 mm); Width: 27'' (686 mm); Height: 31 1/2'' (800 mm)
- Wet weight: 282 lbs (128 kg)
- 1st Title of the third section: PERFORMANCE
- Specification 20: MAX FLOW : 250 GPM
- Specification 21: MAX PRESSURE : 190 PSI
- Specification 22: 230 GPM @ 50 PSI
- Specification 23: 165 GPM @ 100 PSI
- Specification 24: 110 GPM @ 150 PSI
-
Performance Schema:
- 2nd Title of the third section: LIMITED WARRANTY
- Specification 25: 3 YEARS
- 1st Title of the fourth section: DOWNLOADS
- Download Name 1: Download the Assembly Drawings
-
download-link1:
- Download Name 2: Download the Engine Manual
-
download-link2:
- Download Name 3: Download the Instructions Manual
-
download-link3:
- Download Name 4: Priming and Maintenance Videos
- Video link 4: /about-us/video-gallery
- HP: 21
- Max Flow: 250
- Max Pressure: 190
- Weight: 282
