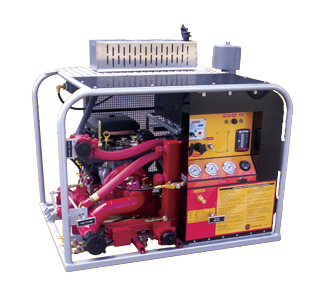

- Product Title: CET 35 CFM GAS
- Product Details: The CET CAFS provides a self-contained, gasolinepowered, “slide-in” type compressed air foam system (CAFS) unit. The CAFS unit is designed to fit into the back of a standard length and width pick-up truck body, to discharge water only, air only or compressed air foam from the same discharge outlet. In addition, the consistency of the compressed air foam (expansion ratio), wet/dry is fully adjustable.
-
cafs-specifications-list-col-1:
SPECIFICATIONS
Engine
- 27 hp Kohler gas engine at 3600 RPM
- 2 cylinders, 4 stroke, air-cooled
- 20 amp. alternator
Water Pump
- 175 gpm @ 100 psi
- Max. flow 225 gpm
- Max. pressure 145 psi
- Single-stage centrifugal pump
- Aluminum case with bronze impeller
- Direct drive
- Stainless steel piping
Compressor
- Oil-injected piston-type
- 35 cfm @ 125 psi
- Water-cooled heads system
- Compressed air is cooled w/ water cooler
- Belt drive
-
cafs-specifications-list-col-2:
CAFS System
- NFPA 125 gpm & 35 cfm @ 125 psi
- 4 outlet discharges 1” or 1-1/2”
- Automatic balancing system
- 1” tank fill line
- 2-1/2” tank to pump, 2-1/2” intake
- Air service line
Dimensions
- 34” length x 44” width x 26” height
Weight
- 650 lb
ADVANTAGES OF A CET CAFS:
- Class A foam allow faster fire suppression and extinguishment than plain water
- Foam clings to most surfaces and protects exposures much longer than plain water
- Class A foam may provide long-term cost savings and may reduce property damage
- Class A foam increases efficiency and conservation of water supply
- Class A foam can be produced at a relatively low cost
- Class A foam forms a protective blanket
- Foam is visible during and after application
- CAFS attack lines are lighter than plain water hose lines
- Foam use may help to preserve evidence of fire cause
- Class A foam aids wildland/urban interface attack
